How is aluminum made?

How is bauxite ore processed into alumina?

The production of aluminum begins with the mining of bauxite, a reddish clay-like ore rich in aluminum minerals. This raw material is crushed and mixed with a hot solution of caustic soda, or sodium hydroxide, in a process called digestion. The soda dissolves the aluminum-bearing minerals while leaving behind impurities like iron oxide and silica as a waste product known as red mud.

Once the aluminum is dissolved, the mixture is filtered to remove the solid impurities. The remaining liquid is cooled and seeded with aluminum hydroxide crystals, which encourages the dissolved aluminum to precipitate out of the solution. This precipitate is then washed and heated in massive rotary kilns at temperatures exceeding 1,000 degrees Celsius. This calcination process drives off water molecules, resulting in a fine, white powder called alumina, or aluminum oxide.

1. Crush the bauxite ore into a fine consistency.
2. Digest the ore in a hot caustic soda solution.
3. Filter out the insoluble impurities.
4. Precipitate the aluminum hydroxide from the liquid.
5. Calcine the precipitate to create pure alumina powder.

How does the Hall-Héroult process work?

The transformation of alumina into metallic aluminum occurs through electrolysis within large steel vats called reduction cells. Because alumina has a very high melting point, it is dissolved in a molten bath of cryolite, a mineral that lowers the melting point to approximately 950 degrees Celsius. This electrolyte bath allows the mixture to conduct electricity effectively while remaining in a liquid state.

Carbon blocks are inserted into the bath to act as anodes, while the carbon lining of the cell serves as the cathode. When a powerful electric current is passed through the cell, the oxygen atoms in the alumina are attracted to the carbon anodes, where they react to form carbon dioxide. The pure molten aluminum, being denser than the electrolyte, sinks to the bottom of the cell. It is then periodically siphoned off for further processing into ingots or alloys.

• The electrolyte bath consists primarily of molten cryolite.
• Electric currents can exceed 300,000 amperes in modern smelters.
• Carbon anodes are consumed during the reaction and must be replaced.
• Molten aluminum is siphoned from the bottom of the reduction cell.

Why is electricity consumption so high?

Aluminum production is often described as "congealed electricity" because the chemical bonds in alumina are exceptionally strong. Breaking these bonds requires a constant and massive flow of direct current to force the aluminum ions to accept electrons. Consequently, aluminum smelters are almost always located near reliable, low-cost sources of electricity, such as hydroelectric dams or large-scale power grids.

The energy intensity of this process is a primary driver of the industry's focus on recycling. Producing new aluminum from recycled scrap requires only about 5% of the energy needed to produce primary aluminum from bauxite. Because aluminum does not lose its physical properties during the melting process, it can be recycled indefinitely without degradation. This efficiency makes aluminum one of the most sustainable materials in the modern global economy.

Common mistakes when refining aluminum

One significant error in the industrial production of aluminum is failing to maintain the precise chemical balance of the electrolyte bath. If the concentration of alumina drops too low, the "anode effect" occurs, which causes the voltage to spike and releases harmful perfluorocarbon gases. This not only wastes energy but also creates environmental hazards that modern smelters work strictly to avoid through automated monitoring systems.

Another common mistake involves contamination during the smelting phase. Even trace amounts of impurities like iron, silicon, or titanium can significantly alter the mechanical properties of the final metal. Smelters must strictly control the purity of the incoming alumina and the quality of the carbon anodes to ensure the resulting aluminum meets industrial standards for strength and conductivity. Rigorous testing protocols are implemented at every stage to ensure the metal is suitable for aerospace, automotive, and packaging applications.

What happens after the aluminum is smelted?

Once the molten aluminum is removed from the reduction cells, it is transported to a holding furnace. Here, manufacturers may add other elements like copper, magnesium, or zinc to create specific alloys tailored for different uses. For example, aluminum-magnesium alloys are favored for their high strength and corrosion resistance in marine environments, while aluminum-silicon alloys are preferred for casting complex engine components.

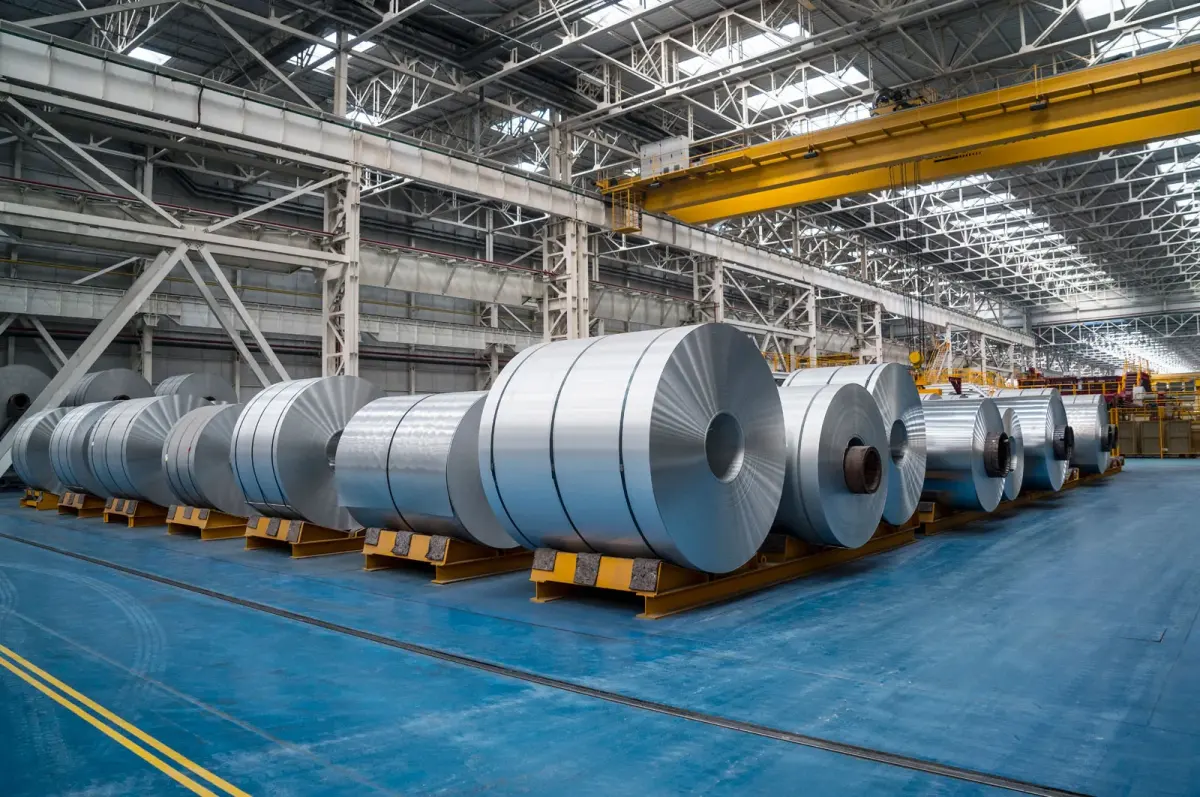

After the alloy composition is finalized, the molten metal is cast into various forms. The most common shapes are large ingots, billets, or slabs, which serve as the raw material for downstream manufacturing. These forms are then sent to rolling mills or extrusion plants, where they are shaped into sheets, foils, or structural profiles. Through these final mechanical processes, the raw aluminum is transformed into the diverse array of products found in modern construction, transportation, and consumer electronics.
