How do you draw a moat?
Short answer
Drawing a moat requires defining the perimeter, excavating a wide trench, and ensuring proper water management. You must plan for structural integrity, drainage, and safety barriers. Whether for historical illustration or landscape design, the process involves geometric precision, soil stability analysis, and the integration of water-retention systems to prevent erosion and seepage.
On this page
How to plan a moat layout
Designing a moat begins with calculating the required width and depth relative to the structure it protects. Historically, defensive moats were often 10 to 30 feet wide and at least 5 to 10 feet deep to prevent intruders from crossing. When drafting your plan, you must account for the slope of the banks, known as the angle of repose, which prevents the soil from collapsing into the trench.
For a functional landscape feature, you should map out the perimeter at least 15 feet away from the foundation of your primary structure. This distance prevents water seepage from compromising the structural integrity of your building's footing. Use a professional surveying tool to ensure the trench remains level if you intend to keep water at a constant depth. Failure to plan for overflow during heavy rainfall can result in flooding the very area you intend to protect.
How to excavate a moat properly
The physical creation of a moat requires heavy machinery or manual labor depending on the scale of the project. You must first clear the vegetation along your perimeter and mark the boundaries with high-visibility stakes. Once the layout is set, follow these steps to ensure a stable trench:
- Excavate the center of the trench first to establish the maximum depth.
- Gradually widen the trench toward the edges to create a gentle slope.
- Compact the base of the trench to create a firm foundation.
- Apply a geological sealant or a heavy-duty pond liner to prevent water loss.
If you are working in clay-heavy soil, you may be able to rely on the natural impermeability of the earth. However, most modern installations require a synthetic liner to maintain water levels during dry seasons. Always ensure that the excavated material is moved far enough away from the edge to prevent the weight of the soil pile from causing the banks to cave inward.
Best materials for moat construction
Selecting the right materials is critical for the longevity and maintenance of your moat. A high-density polyethylene (HDPE) liner is the industry standard for preventing leaks, as it is puncture-resistant and flexible enough to accommodate ground shifting. You should also consider using geotextile fabric beneath the liner to protect it from sharp rocks or roots that could cause future tears.
For the banks, natural stone or riprap—a layer of large, angular rocks—is highly effective at preventing erosion. These materials dissipate the energy of moving water and provide a aesthetic finish that mimics historical fortifications. Avoid using loose sand or fine gravel on the slopes, as these materials will wash away quickly during rainstorms. If you are incorporating a bridge, ensure the abutments are reinforced with poured concrete to support the weight of the crossing structure.
Why moat maintenance is necessary
A stagnant moat can quickly become an environmental hazard, attracting mosquitoes and accumulating debris. To maintain water quality, you must implement a circulation system, such as a solar-powered fountain or an external pump that filters the water. These systems prevent the development of anaerobic conditions, which lead to foul odors and excessive algae growth. Regular skimming of surface debris is also essential to keep the water clear.
In addition to water quality, you must monitor the structural integrity of the banks annually. Over time, freeze-thaw cycles can cause small fissures in the soil, which may lead to bank failure if left unaddressed. If you notice significant settling or cracks near the edge of the moat, you should reinforce the area with additional vegetation or stone retaining walls. Keeping the surrounding area clear of invasive trees is also vital, as deep root systems can penetrate liners and cause significant leaks.
Common mistakes when building a moat
The most frequent error in moat design is failing to account for proper drainage and overflow management. Without a dedicated spillway or drainage pipe, the moat will inevitably overflow during a storm, potentially causing significant erosion to the surrounding landscape. Another common oversight is neglecting safety regulations; deep water features often require fencing or depth markers to prevent accidental drowning, especially in residential areas.
- Ignoring local zoning laws regarding water features and excavation depth.
- Failing to check for underground utility lines before beginning the dig.
- Designing banks that are too steep, leading to frequent soil collapse.
- Neglecting to install a filtration system, leading to stagnant, murky water.
By avoiding these pitfalls, you ensure the project remains safe and functional for years to come. Always consult with a structural engineer or a landscape architect before breaking ground to ensure your design complies with local safety codes and environmental standards. Proper planning and consistent maintenance remain the two most important factors in successfully managing a moat, whether it serves as a historical tribute or a unique garden feature.
Key facts
- A moat is a defensive ditch surrounding a castle or fortification, typically filled with water to hinder siege engines and infantry.
- To design one, you must calculate a width of at least 15 to 30 feet to prevent attackers from using standard scaling ladders.
- Depth should be maintained between 6 and 10 feet to ensure that wading is impossible for soldiers carrying heavy armor.
- The inner slope, or scarp, should be lined with stone to prevent erosion and to make climbing out difficult for invaders.
- Include a "counterscarp" on the outer bank, which is a steep, reinforced wall that forces attackers to descend into the ditch before they can begin an assault.
- Modern landscaping moats require a clay liner or waterproof membrane to prevent water seepage into the surrounding soil.
The bottom line
Drawing a moat requires careful planning regarding depth, width, and slope stability to be effective. Whether for historical recreation or modern landscaping, you must prioritize water management and bank reinforcement to prevent collapse. By integrating a stone-lined scarp and a controlled water source, you create a functional barrier that balances defensive utility with environmental durability, ensuring the structure remains stable and visually imposing for years.
People also ask
Did all medieval castles have water-filled moats?
No, many castles utilized "dry moats," which were deep, steep-sided ditches designed to trap siege towers and miners. These were often filled with sharpened wooden stakes or debris to impede movement.
How did people cross a moat to enter the castle?

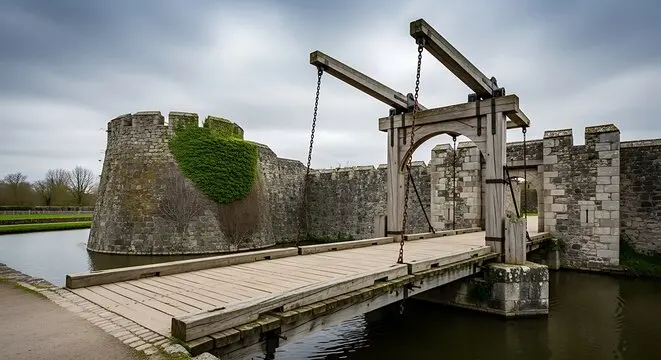

The primary method was a drawbridge, a heavy wooden platform raised by chains or ropes connected to a winch system. Some castles also featured permanent stone bridges leading to a fortified gatehouse.
What was the main purpose of a moat besides defense?
Beyond military protection, moats served as drainage systems for the castle grounds and as a source of water for livestock. In some cases, they were stocked with fish to provide a reliable food supply during a siege.
How were moats kept clean and odor-free?
Castles often diverted nearby streams or rivers to ensure a constant flow of fresh water through the moat. Stagnant water was a major health hazard, so maintaining a current was essential for sanitation.
Can you build a moat in a modern residential garden?
Yes, but you must check local zoning laws and safety regulations regarding water features. Most modern residential moats are shallow, decorative ponds that do not require the defensive depth of historical designs.
What is the biggest mistake when digging a moat?
Failing to account for soil stability is the most common error. Without proper retaining walls or sloped banks, the sides of the ditch will collapse over time, leading to erosion and structural damage to nearby foundations.
